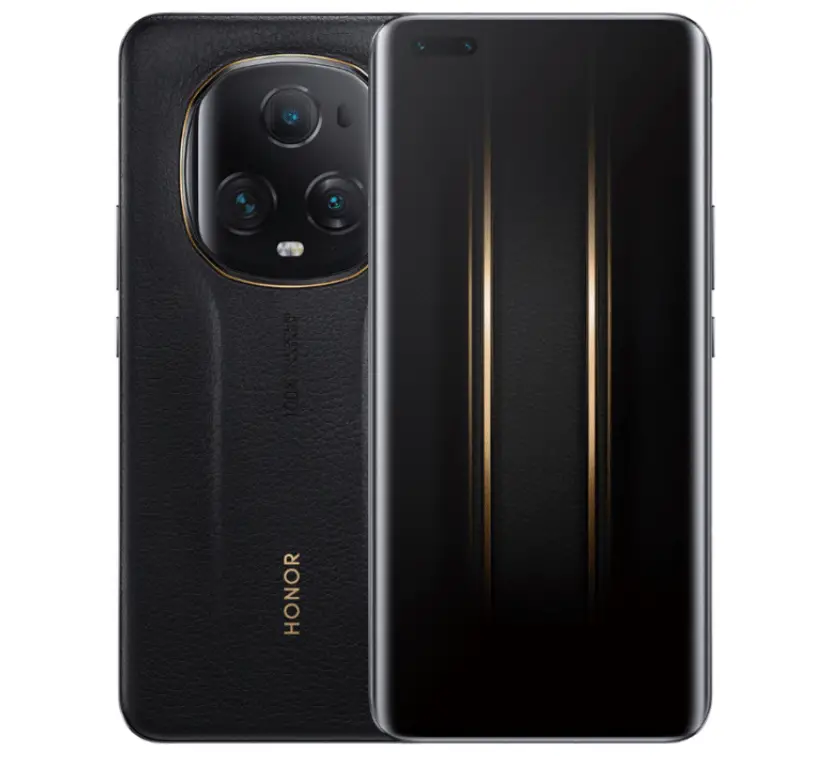

HONOR Magic 5 Ultimate Edition 5G

162.9 mm

76.7 mm

8.77 mm

Approx. 217 g (including the battery)

*The actual dimensions and weight may vary depending on the configuration, manufacturing process, and measurement method.

6.81 inches

*With a rounded corners design on the display, the diagonal length of the screen is 6.81 inches when measured according to the standard rectangle (the actual viewable area is slightly smaller).

19.54:9

1.07 billion colors

OLED

2848×1312

*With a rounded corners design on the display, the resolution of the screen is 2848×1312 Pixels when measured according to the standard rectangle (the actual viewable area is slightly smaller).

Supported

92.33%

Quad-Curved Floating Screen

Snapdragon 8 Gen 2 Mobile Platform

Octa-core

1×Cortex-X3 3.19GHz+2×Cortex-A715 2.8GHz+2×Cortex-A710 2.8GHz+3×Cortex-A510 2.0GHz

Adreno 740

Gestures, Three-key navigation, Navigation dock

MagicOS 7.1 (Based on Android 13)

MagicOS 7.1

50MP Wide Main Camera (f/1.6, OIS)+50MP Ultra Wide Camera (f/2.0)+50MP Periscope Telephoto Camera (f/3.0, 3.5x Optical Zoom, 100x Digital Zoom, OIS)

*The actual image resolution may vary depending on the shooting mode.

Support for 4K 60fps (3840×2160) video recording

Digital zoom

100x

8192×6144 pixels

*The actual image resolution may vary depending on the shooting mode.

3840 x 2160 pixels

*The actual video resolution may vary depending on the shooting mode.

Rear single LED flash

AI Motion Sensing Capture, AI photography, Super Wide Angle, Aperture,Multi-Video, Night shot, Portrait mode, Photo, Pro mode, Video, Panorama, Filter,Watermark, Scan Document, HIGH-RES,Super Macro, Capture smiles,Time-lapse, Timer,Movie, Slow-MO,Story

EIS+OIS

12MP Front Camera + 3D Depth Camera

* In different photo modes, the number of pixels may be slightly different, please refer to the actual situation.

4096×3072 pixels

*The actual image resolution may vary depending on the shooting mode.

3840 x 2160 pixels

*The actual video resolution may vary depending on the shooting mode.

Support 4K (3840×2160) video recording

*The actual image resolution may vary depending on the video recording mode.

Portrait, Filter, Watermark, Capture smiles, Mirror reflection, Timer, Night,Gesture control

Supported 3D face unlock

5350 mAh (rated value), 5450 mAh (typical value)

*This capacity is the nominal battery capacity. The actual battery capacity for each individual phone may be slightly above or below the nominal battery capacity.

Lithium polymer battery

The phone supports up to 11V/6A SuperCharge, compatible with 10V/4A, 10V/2.25A, 10V/2A.

*The actual charging power will change intelligently with different scenarios, please refer to the actual situation.

HONOR 66W SuperCharge

The phone supports up to max 50W Wireless SuperCharge.

*The wireless charging base is sold separately.

5G(NR)

4G (LTE TDD/LTE FDD)

3G (WCDMA)

2G (GSM)

Note:

*In Dual SIM version, either card slot can be set to accommodate the primary or secondary SIM card.

*Functions available on the live network depend on the situations of carrier's network and related services deployment.

5G NR/LTE TDD/LTE FDD/HSPA+/DC-HSDPA/WCDMA/EDGE/GPRS

* Functions available on the live network depend on the carrier network.

Supported

* Blind mating is supported, which allows you to configure any card as the primary SIM card.

* Open "Switch data connection during calls" in "Dual SIM settings" to enable secondary SIM card Internet accessibility during calls.

* VoLTE call via the secondary SIM card depends on the carrier network.

802.11 a/b/g/n/ac/ax/be, 2x2 MIMO

2.4GHz and 5GHz

Supported

Supported

BT5.2, BLE, SBC, AAC, LDAC, APTX, APTX HD

Supported

Supported (Computer need install HonorSuite)

Supported (operator and third-party software)

*The availability of this function depends on the network operators in different countries or regions. Contact your network operator for details.

Supported (maximum output current 1A/5V during reverse power supply)

Support GPS /AGPS/GLONASS/BeiDou/Galileo

Supported

Supported

Supported

Supported

Supported

Supported

Supported

Support Reader/Writer Mode, Card Emulation Mode (SIM*, HCE)

*Only SIM1 support.

*Peer-to-Peer mode is not supported.

*The NFC sensing area is in the middle of the back of the mobile phone.

Supported

Supported

3gp/mp4

mp3/mp4/3gp/ogg/amr/aac/flac/wav/midi

DTS:X® Ultra sound effects

Supported

Supported(IP68)

*HONOR Magic5 Ultimate is rated as IP68 for splash, water, and dust resistance under IEC standard 60529 and was tested under controlled laboratory conditions. Splash, water, and dust resistance are not permanent conditions and resistance may decrease over time with normal use. Do not charge the phone when it is wet or in moist environments. Refer to the manual for cleaning and drying instructions. Submersion in liquid and the resulting damage is not covered by the warranty. IP68 rating means that based on certain defined test conditions, the device is protected against harmful ingress of static water at up to 1.5 meters, for up to 30 minutes, meanwhile the temperature difference between water and device is not more than 5°C.

Type-C

USB Type-C

Regular Version:

1. Phone(Built-in battery) x 1

2. Quick Start Guide x1

3. HONOR SuperCharge x 1

4. Type-C Cable x 1

5. PU Protective cover x 1*

6. Eject Tool x 1

7. Warranty Card x 1*

8. TP protective film (Attached on the phone before delivery) x 1

Special Version:

1. Phone(Built-in battery) x 1

2. Quick Start Guide x1

3. HONOR SuperCharge x 1

4. Type-C digital earphone X 1

5. Type-C Cable x 1

6. Montblanc Bespoke Protective Case x 1*

7. Eject Tool x 1

8. Warranty Card x 1*

9. TP protective film (Attached on the phone before delivery) x 1

* Dependent on market.
